Pre-Installation

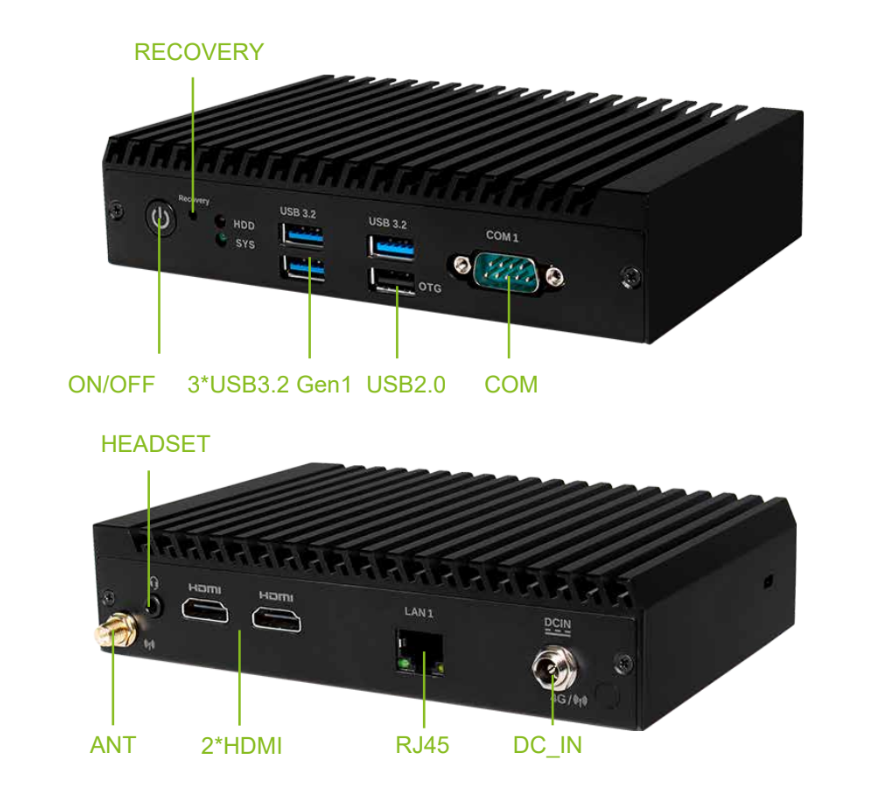

You'll find the items pictured below in the box shipped from Spectrio:
- DN84 device
- Power adapter
- HDMI cable
- Cat5/6 (Ethernet) cable
- Wireless antenna
For successful installation, you’ll need to provide the following:
- HDTV with an available HDMI input
- A TV/display with 720p/1080p/4k resolution
- Broadband internet connection
- Wired network
- Dedicated power source near your display
- If using Wi-Fi, a USB keyboard
Installation & Setup
Your player should be installed in an easily accessible location. This could be on the top, bottom, side, or top of your TV/display. You can also set it on a table or shelf next to your TV/display.
To connect your TV:
- Connect an HDMI cable from your player to your television.
Note: Be sure to keep in mind which HDMI input you use on your television (HDMI 1, HDMI 2, etc.).
- Connect the power adapter to your media player and a power outlet.
- When the player first boots, you’ll be taken through the boot animation, leading to the passphrase screen.
To connect your player to Wi-Fi:
- Connect the wireless antenna to the back of your player.
- Plug your keyboard into an available USB slot on the player.
- When the player powers on, you’ll be taken to a setup screen that’ll prompt you to press the spacebar on your keyboard.
- Using your keyboard, toggle Use Wi-Fi on.
- Choose your network, enter the password, and select Connect.
- When connected, you’ll be taken to the passphrase screen.
Note: Never use guest Wi-Fi.
To connect using an Ethernet cable:
- Connect an Ethernet cable from your router to the player.
- The player will typically connect automatically.
Home Screen

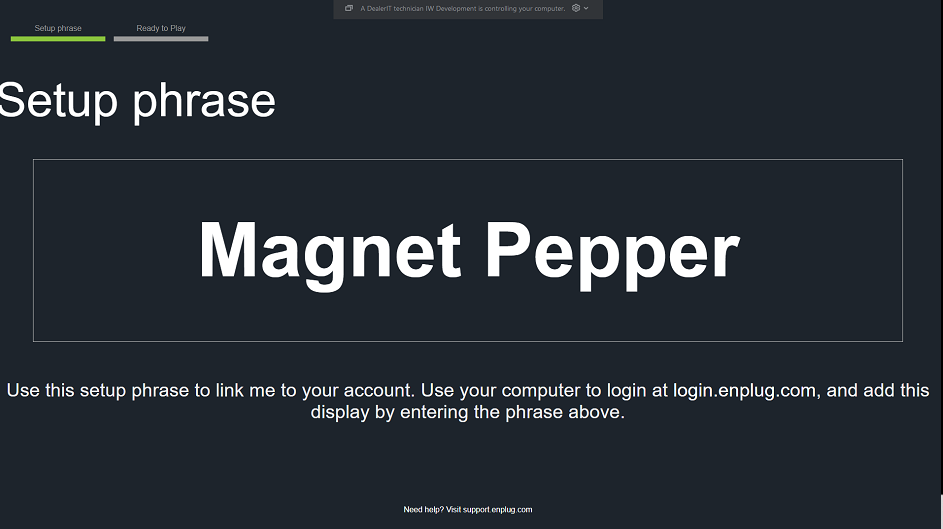

Once connected, a two-word passphrase will be displayed on the Home Screen.
From here, there are two different ways to link content to your account:
- Follow these steps to link the device to existing content.
- Follow these steps to link the device to new content.
Troubleshooting
If you’re having issues with your display or the player isn’t updating, unplug your device, wait 30 seconds, then plug back in and power on.
If this doesn’t resolve your issue, reach out to support@spectrio.com (include your Account Name) or call 1-800-584-4653 x6504.
Note: Following device activation, it can take at least 30 minutes to download and update content.
Replacement Parts
For replacement parts (remote, devices, power supply, etc.), you can email support@spectrio.com. You’ll need to include your Company Name, and shipping information.
