Processing
| CPU |
Rockchip RK3576 |
| Processing Units |
4 Cores Cortex-A72 & 4 Cores Cortex-A53 |
| NPU |
6TOPS RKNN
Support int4/int8/int16/FP16/BF16/TF32 acceleration
|
| TDP |
6W |
Memory & Storage
| System Memory |
4 GB, Onboard LPDDR4 /LPDDR4x |
| Storage |
64 GB, Onboard eMMC
Optional: 1 x M-Key M.2(2242) PCIe2.1 X1 for SSD
|
Display
| GPU |
Mali-G52MC3 |
| Graphic Engine |
OpenGL ES3.2, OpenCL2.0, Vulkan |
| Multi-Media Decoders |
- 8K30 H.264/H.265/VP9/AV2/AVS2 Decoder
- 4K60 H.264/H.265 Encoder
|
| Display Interface |
- 1 x HDMI (Max. 3840 x 2160 @120 Hz)
- 1 x HDMI (Max. 2560 x 1600 @60 Hz)
|
Network & Connectivity
| Network Controller |
Realtek RTL8211F Gigabit Ethernet |
| Ethernet Interface |
1 x RJ45 (Optional: 2 x RJ45) |
| WiFi/Bluetooth |
Onboard WiFi/BT module |
| Mobile Network |
- 1 x B-key M.2(3042) for 3G /4G
- 1 x SIM Slot
|
| Antenna Connectors |
- 1 x Connector for WiFi/BT
- 1 x Connector for 3G/4G (Reserved)
|

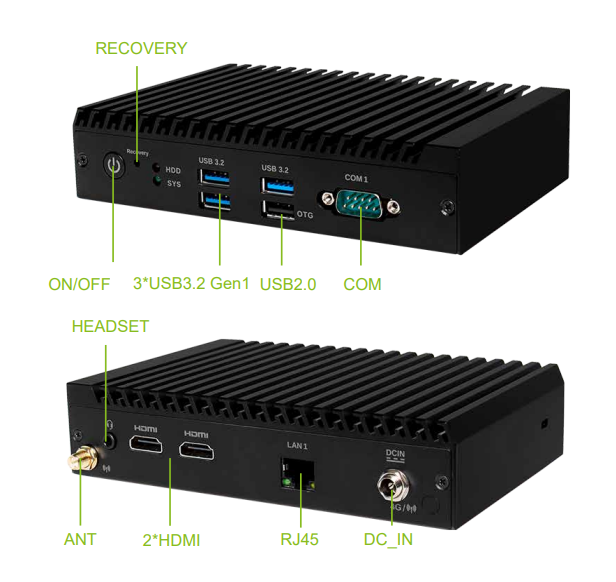

I/O Interface
| USB Ports |
- 3 x USB 3.2 Gen 1
- 1 x USB 2.0 OTG
|
| Serial Port |
1 x RS232 (Optional: 1 x RS232, 2 x RS485) |
| Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
| Auto Power On |
Yes |
| RTC |
Set up independently every day, a week as a cycle |
| Watchdog Timer / Remote On |
N/A |
System
| Power Requirement |
Lockable DC-IN, 12 V/3 A |
| Dimensions |
165 mm x 108 mm x 40 mm (6.5” x 4.17” x 1.46”) |
| Construction |
|
| Operating System |
Android 14 |
| Operating Temperature |
0°C to 45°C (32°F to 104°F) @0.7m/s Air Flow |
| Humidity |
95% at 45°C (non-condensing) |
| Certifications |
|
Order Information
| CPU |
Rockchip RK3576 |
| RAM |
4 GB, Onboard LPDDR4 |
| Storage |
64 GB, Onboard eMMC |
| WiFi/Bluetooth |
Onboard WiFi/BT module (2.4 GHz / 5 GHz) |
| Operating System |
Android 14 |
Packaging
-
Packing List: 1 x WiFi Antenna, 1 x AC Power Cable, 1 x AC Power Adapter
-
Package Material: Carton, EPE
