Processing
| CPU |
Rockchip RK3399 |
| Frequency |
1.80 GHz |
| Processing Units |
2 Cores Cortex-A72 & 4 Cores Cortex-A53 |
| TDP |
6W |
Memory & Storage
| System Memory |
4 GB, Onboard LPDDR4-2133 MHz |
| Storage |
32 GB, Onboard eMMC (Optional: 64 GB) |
| Card Expansion |
1 x TF Card Reader |
Display
| GPU |
Mali-T860MP4 |
| Graphic Engine |
- OpenGL ES1.1/2.0/3.0/3.1, OpenCL
- Support AFBC (ARM Frame Buffer Compression)
|
| Multi-Media Decoders |
- 4K VP9 decoders
- 4K 10-bit H.265 decoders
- 1080P VC-1, MPEG-1/2/4, VP8 video decoders
|
| Display Interface |
- 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x HDMI (Max. 2560 x 1440 @30 Hz)
|
Network & Connectivity
| Network Controller |
1 x Pef7071 PHY |
| Ethernet Interface |
1 x RJ45 |
| WiFi/Bluetooth |
Onboard WiFi/BT module |
| Mobile Network |
- 1 x Full-size Mini-PCIe for 3G/4G
- 1 x SIM Slot
|
| Antenna Connectors |
- 1 x Connector for WiFi/BT
- 1 x Connector for 3G/4G (Reserved)
|

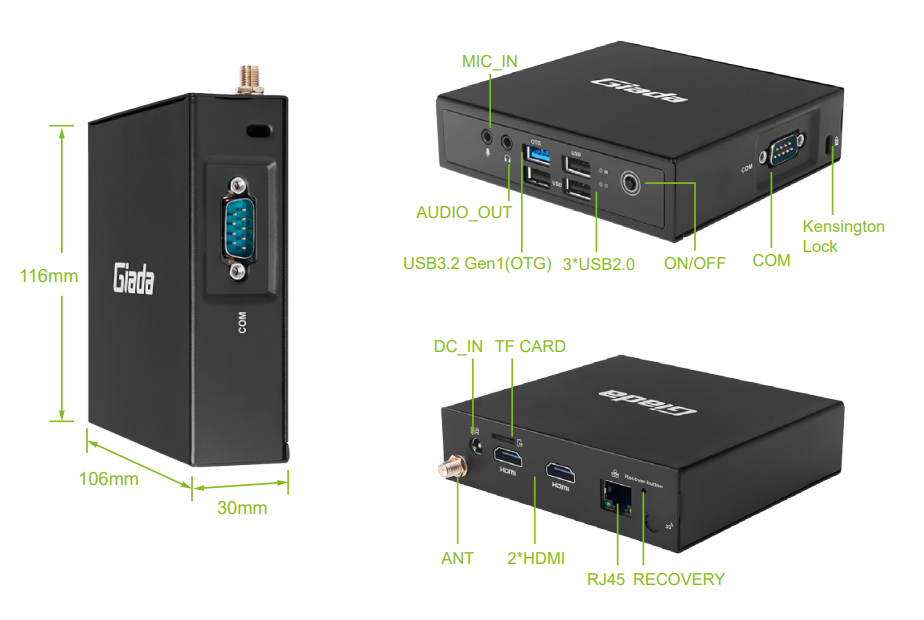

I/O Interface
| USB Ports |
- 1 x USB 3.2 Gen 1 (OTG)
- 3 x USB2.0
|
| Serial Port |
1 x RS232 |
| Audio |
|
| Auto Power On |
Yes |
| RTC |
Set up independently every day, a week as a cycle |
| Watchdog Timer / Remote On |
N/A |
System
| Power Requirement |
DC-IN, 12 V/2.08 A |
| Dimensions |
116 mm x 106 mm x 30 mm (4.57” x 4.17” x 1.18”) |
| Construction |
|
| Operating System |
Android 11 |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) @0.7m/s Air Flow |
| Humidity |
95% at 40°C (non-condensing) |
| Certifications |
|
Order Information
| CPU |
Rockchip RK3399 |
| RAM |
4 GB, Onboard LPDDR4-2133 MHz |
| Storage |
32 GB, Onboard eMMC |
| WiFi/Bluetooth |
Onboard WiFi/BT module (2.4 GHz / 5 GHz) |
| Operating System |
Android 11 |
Packaging
-
Packing List: 1 x WiFi Antenna, 1 x AC Power Cable, 1 x AC Power Adapter
-
Package Material: Carton, EPE
