Windows Device Kit 4 (WDK4)

The Enplug WDK4, Spectrio's Windows Device Kit, allows you to power up to four displays at once.

Hardware Requirements

The WDK4 supports a four-display video wall (4x1, 1x4, 2x2) or less (3x1, 1x3, 2x1, 1x2).

The following items are required:

• WDK4 Device with power supply*
• Four displays with power cords (7.5ft)
• An HDMI cable (6ft)*
• A DisplayPort to HDMI cable (6ft)*
• Two USB-C to HDMI cables (6ft)*
• A keyboard and mouse
• A stable Internet connection

*Items included in Enplug Windows Device Kit 4 (WDK4)

Technical Specifications

• Operating System: Windows 10
• Memory: 4GB DDR4 3200MHz SO-DIMM
• Storage: 256GB M.2 SATA SSD
• Wireless Data Network: Intel® Wi-Fi 6 AX200 (2.4GHz/5GHz)
• LAN: Gigabit LAN, Realtek® 8111EP
• Power Supply: 19Vdc, 3.42A, 65W Power Adapter
• Device Dimensions: 11.5 x 11.5 x 4.9cm
• Weight: 700g
• Resolution: 4K/60Hz

Installation

Note: If you're using Ethernet, connect your Ethernet cable directly to the WDK4. If you're using Wi-Fi, configure during the software setup.

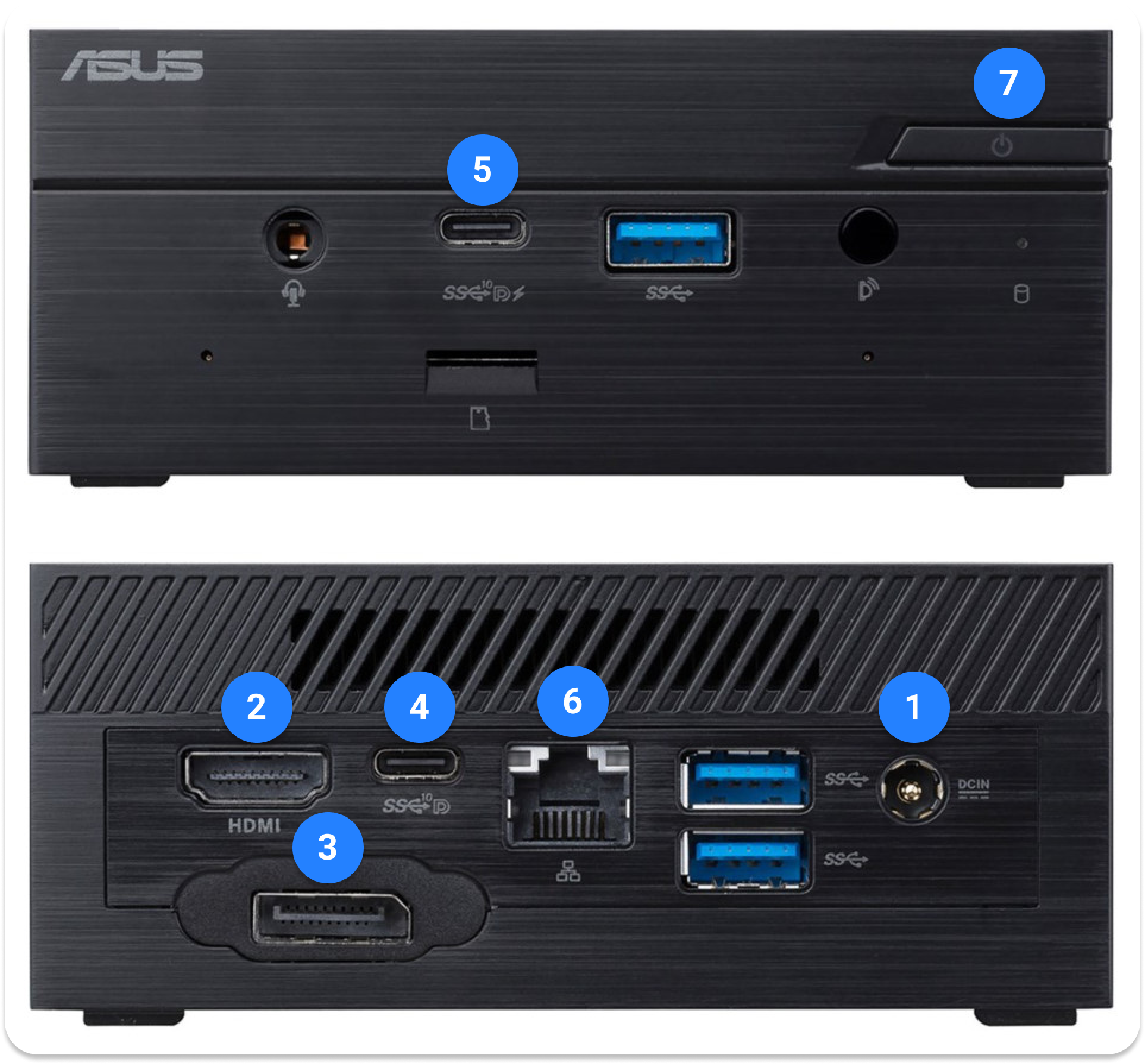

To install the Windows Device Kit 4 (WDK4):

1. Plug the WDK4 device and all the displays into a dedicated power supply.
2. Connect the HDMI cable from the back of the WDK4 Device to Display 1.
3. Connect the DisplayPort cable from the back of the WDK4 to an HDMI port on Display 2.
4. Connect the first USB-C cable from the back of the WDK4 to an HDMI port on Display 3.
5. Connect the second USB-C cable from the front of the WDK4 to an HDMI port on Display 4.
6. Turn on the WDK4.
7. After the device boots, you'll be automatically logged in as an Enplug user.

For questions or concerns, please reach out to our Support Team at support@spectrio.com.
