You can manage your display's operation hours using the Enplug Operating Hours manager. The Enplug Device 4K supports HDMI-CEC and RS232 control. The legacy device supports RS232.
Note: This is a Professional and Enterprise package feature. If you don't see this feature on your account, contact your account manager for information on upgrading.
HDMI-CEC
Requirements:
- For Enplug Device 4K only (not available for Legacy devices, Windows, or Web Players).
- The TV must support HDMI-CEC (or equivalent).
RS232
Requirements:
- For Enplug devices only (not available for Windows or Web Players).
- Use an Enplug Certified screen.
- Connect a PL-2303 chipset USB<->RS-232 cable + Null Modem from your Enplug Certified screen to the Enplug device.
The following components are verified as compatible:
Note: If your display has a 3.5mm RS232C port, you'll need one additional cable: DB9 Female to 3.5mm Serial Cable (can be found on Amazon)

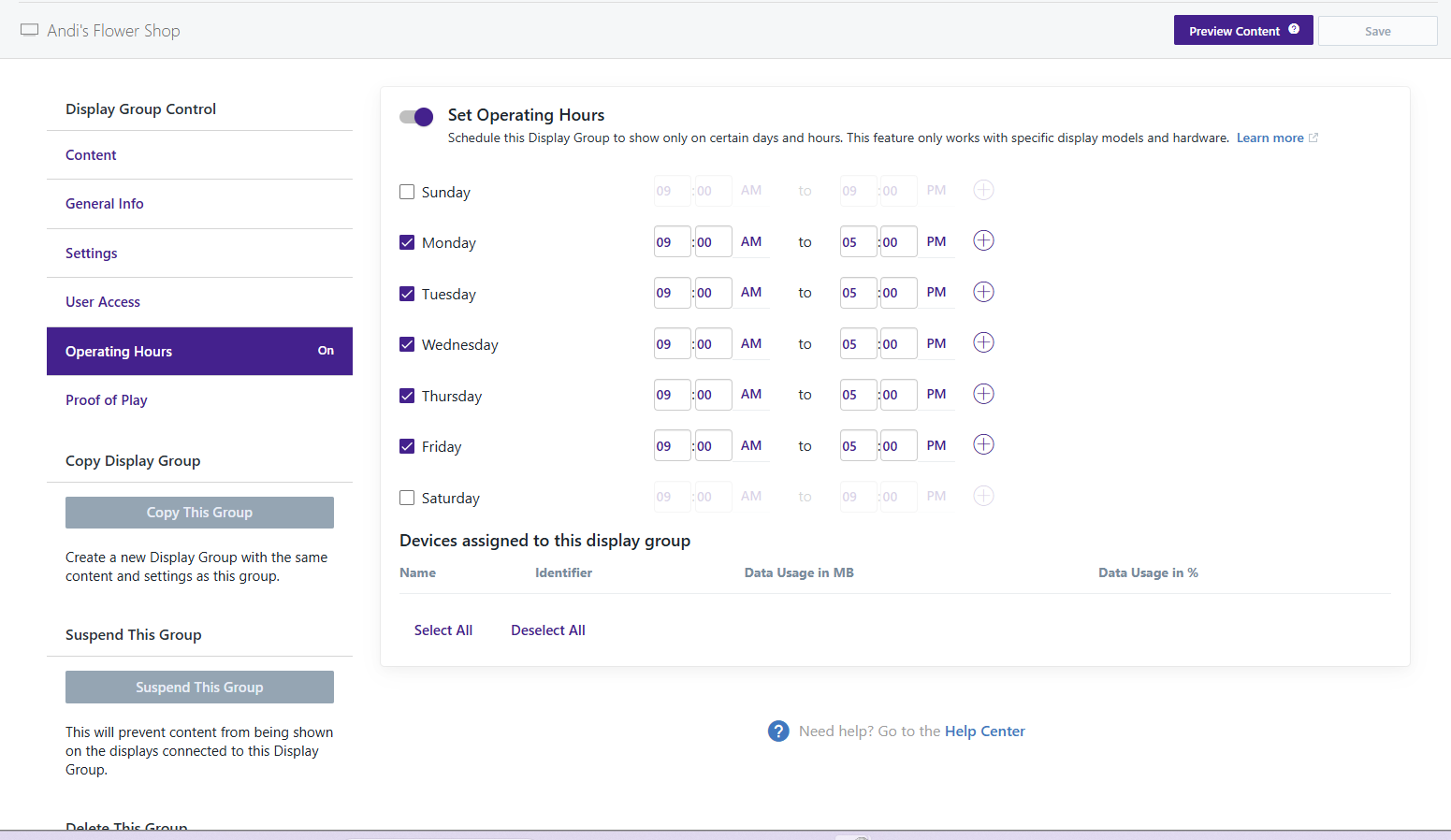

Assigning Operating Hours
To assign Operating Hours:
- Log into Enplug.
- Select the Display Groups drop-down and choose the group you would like to assign Operating Hours.
- Open the Operating Hours tab on the left.
- Toggle on Operating Hours for the Display Group and set desired hours.
- Click Save.
Note: RS232 must be disabled. Ensure that your TV has the HDMI-CEC (or equivalent) feature enabled.
Full list of Enplug Certified screens:
Viewsonic 55"- CLED5500
Viewsonic 55"- CDP5537
Viewsonic 55"- CDP5560
Viewsonic 42"- VT4236-L
Viewsonic 42"- CDP4237-L
Viewsonic 42"- CDE4200-L
Viewsonic 42"- VT4200-L
Viewsonic 32"- CDE3200
Viewsonic 32"- VT3200
Viewsonic 24"- VT2406-L
Viewsonic Eposter 55"- EP5502
Viewsonic Eposter 42"- EP4220
LG 55"- 55LS460E
LG 55"- 55WL30MS
LG 55"- 55LS33A-5D
LG 47"- 47LN549E
LG 42"- 42LK451C
LG 42"- 42LN549E
LG 42"- 42WS50BS-B
LG 42"- 42WS50MS-B
LG generic
Sharp 60"- LC-60LE632U
Sharp 60"- LC-60LE640U
Sharp 60"- LC-60LE633U
Samsung 55"- MD55-C
Samsung 22"- S22C650P
If you have an RS232C compatible display not listed here, it may still work out of the box if it shares a manufacturer from the above list.
For questions or concerns, please reach out to our Support Team at support@spectrio.com.
